FUNCTIONS

The champion among compact screwdrivers. With 18V of power.

Lightweight, compact, and impressively powerful. The CXS 18 compact screwdriver is the ideal helper for a variety of everyday tasks. Its ergonomic C-shape facilitates precise work thanks to the position of the handle on the drilling and screwdriving axis. Numerous adapters solve even the most challenging application situations, perfect for tight spaces or corners. Quick accessory changes are guaranteed by the FastFix interface and the CENTROTEC system. Intelligent details such as the bit holder, light control, and the Systainer³ with lid compartment make the CXS 18 a compact powerhouse with practical extra features.

• Convincing ergonomics and low weight for easy drilling and screwing.
• The compact and manageable C-shape facilitates work even in tight spaces.
• The ergonomic C-shape for direct engagement on the screw shaft allows for more focused force transmission and more sensitive work.
• Quick and tool-free retrofitting for drilling, screwing, angled drilling, and angled screwing thanks to the FastFix interface.
• The depth stops and eccentric adapter also allow for depth-limited screwing along the edges.
• Numerous adapters for various applications. All adapters for current 18V screwdrivers are compatible with the CXS 18 and TXS 18.
• Longevity is also thanks to the EC-TEC brushless motor.
• Integrated magnetic bit housing
• Ideal workspace illumination through activatable LED lighting (in combination with a Bluetooth® battery, it can also be controlled via the Festool App)
• From the Festool App, it is possible to reverse the right/left switch so that it is no longer in the wrist area for left-handed workers in the main application (when rotating to the right); this is only possible in combination with a Bluetooth® battery.

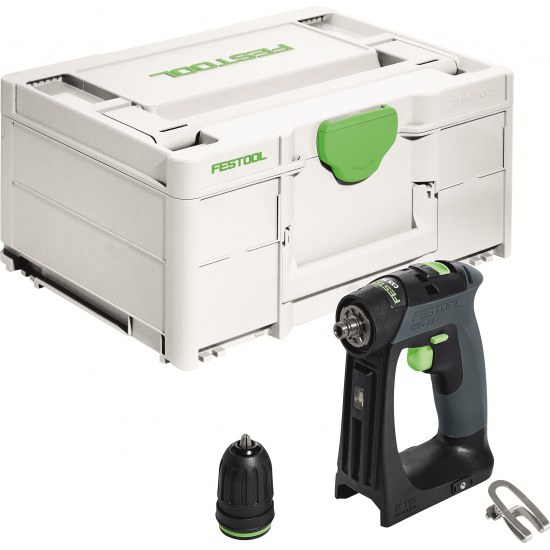

• Simply mobile: The CXS 18 is supplied in the practical Systainer³ – allowing it to be perfectly integrated into bott’s vehicle equipment for easy transport from the workshop to the job site.
• 13-level torque adjustment and deactivation for precise screwing.
• Sturdy belt hook that can be mounted on either side.

USE

Main fields of application

• Assembly of furniture, hardware and kitchens.
• Installation of baseboards, boxes, lamps, curtains
• Interior finishing
• Production of facade cladding and terrace flooring.
• Light to medium drilling and screwdriving work in wood, metal and plastic.
• Wood screws up to 6×240 mm
• Drilling in wood up to 35 mm with Forstner drill bits

TECHNICAL DATA

Battery voltage (nominal voltage): 18 V

Speeds: 2

No-load speed 1st/2nd gear: 0 – 470 / 0 – 1600 min⁻¹

Hole diameter in wood/metal: 35/10 mm

Torque adjustment 1st/2nd speed: 1.1 – 8 / 0.4 – 2.3 Nm

Maximum torque for wood/steel: 22/40 Nm

Drill chuck opening: 1 – 10 mm

Operating mode: Accumulator

Product weight without accessories: 0.70 kg

Shipping weight with accessories: 3.30 kg
